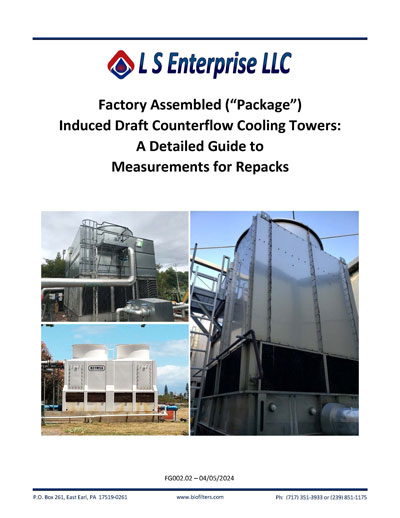

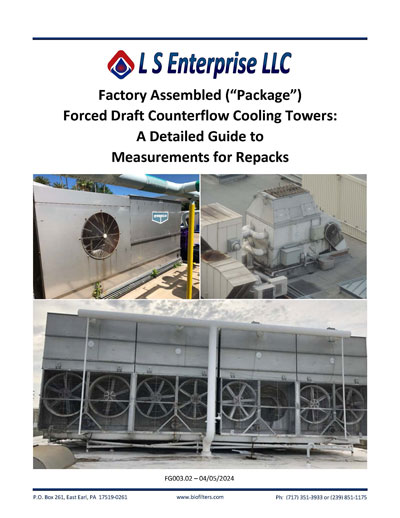

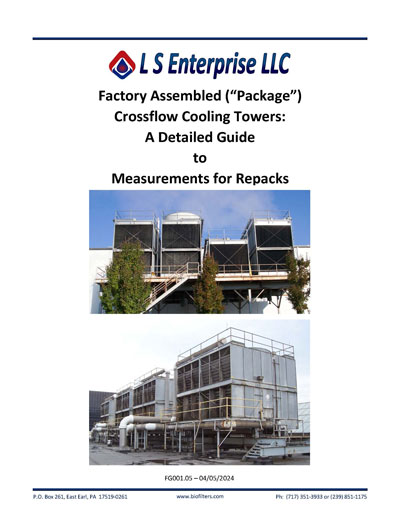

One of the many challenges that face someone seeking to repack a cooling tower is determining not only what material is needed, but also how much is needed. To assist with this L S Enterprise LLC has created Field Guides for counterflow and crossflow towers. These Field Guides describe in great detail common factory assembled (“package”) towers, the original OEM configurations, typical repack configurations, and how to measure a tower — including drawings to assist with this — so that you can ensure you get the materials you need to do the job right. Contact us for more information on our Field Guides.
Cooling Tower Field Guides
Cooling Tower Field Measurement Drawings
Drawing# LSE0001.0 – Single-Stack XF Tower Dimension Worksheet
Drawing# LSE0002.0 – Double-Stack XF Tower Dimension Worksheet
Drawing# LSE0004.0 – IDCF Tower Dimension Worksheet
Drawing# LSE0005.0 – FDCF Tower Dimension Worksheet
